Acoustic Calibrator - Class 1

Class 1 Calibrator
Class 1 Calibrator

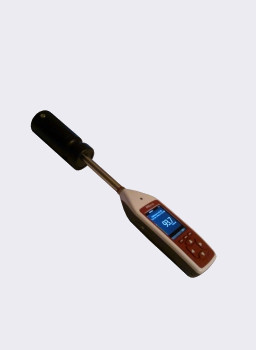

Class 1 Calibrator Class 1 Calibrator Calibrating a Sound Meter

Features

  • IEC 60942:2003 Class 1
  • ANSI S1.40:2006 Class 1
  • Sound pressure level 94 dB
  • Frequency 1 kHz
  • Fits ½" microphones
  • Adapter available for ¼" microphones

Applications

  • Calibration check of Type 1 sound level meter
  • Field calibration checks
  • Calibration of environmental noise monitors
  • Required by many noise regulations
CR515
$514.00
Class 1 Calibrator, 94dB 1kHz, for ½" microphones
In stock

QD7
$45.00
Adapter for use with ¼" microphones
In stock

Overview

The CR515 Acoustic Calibrator meets ANSI S1.40:2006 and IEC 60942:2003 to Class 1, the more accurate grade. It is most suited to the Type 1 sound level meters and environmental noise monitors that NoiseMeters offers.

This calibrator is included in most of the Type 1 Noise Measurement Kits and Outdoor Noise Kits, along with the sound level meter, carrying case and software where applicable. Please refer to the sound level meter web pages for more information.

Using It

As soon as the calibrator is switched on it emits a 1 kHz tone at 94 dB. The calibrator should be pushed carefully (firmly, but slowly) on to the microphone capsule.

The meter should now be adjusted accordingly. There will often be a free-field adjustment to make for the microphone in use. So, for example, you may actually be adjusting to 93.8 dB on the meter. For meters provided by NoiseMeters this is either dealt with automatically by the meter, or is covered in the meter's User Manual.

StandardsIEC 60942:2003 Class 1
ANSI S1.40:2006 Class 1
Type ApprovalPTB-1.61-4028829
LNE-24906
CEM 140786001
Sound Level94.0 dB ± 0.2 dB
Frequency1 kHz ± 1%
Distortion< 2%
Reference conditions23°C, 101.3 kPa, 65% RH
Microphone size½" (to IEC 1094-4)
Calibration adapterQD7 for use with 1/4" microphone capsules
Battery type1 x 9v (PP3, 6LR61, 6F22)
Dimensions121 x Ø47 mm
Weight220 g with battery
ControlsPush button start, Automatic switch off with green
LED indication. User override of automatic switch off
CE classificationEN 61000-6-3:2007+A1:2011
EN 61000-6-1:2007
